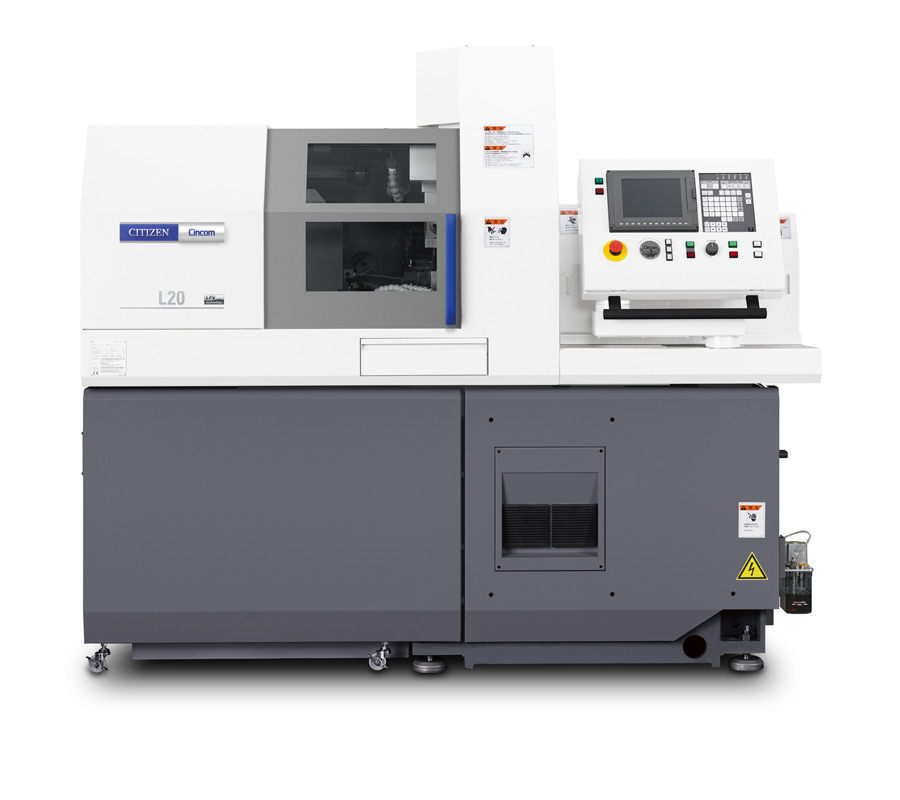

    L20

    Citizen’s best-selling L series machines have been relaunched with 4 different models using a common platform and a comprehensive range of tool holders compatible with other models.

    The new L20-VIII offers increased flexibility with up to 37 tool capability.

    Another major feature is the ability to switch between guide bushing type and non-guide bushing type. This feature is provided as standard; the guide bushing can be fitted or removed very quickly with a simple operation.

    The L20-VIII can be used as a regular guide bushing type lathe when machining long, thin workpieces and as a guide bushing-less type reducing material wastage. Increased main spindle size reduces material wastage and bar preparation requirement. Oversized options are available for up to 25mm diameter material.

    Download Brochure
    L20
    Item L20VIII L20IX L20X L20XII
    Maximum machining diameter ø20mm and 25mm option
    Maximum machining length GB machine 200mm/1chuck
    GBL machine Workpiece diameter×2.5mm/chuck
    Maximum drilling diameter for main spindle ø10mm
    Maximum tapping diameter for main spindle(tap,die) M8
    Main Spindle through-hole diameter ø26mm
    Spindle speed Max.10,000min-1
    Maximum drilling diameter for gang rotary tool ø8mm
    Maximum tapping diameter for gang rotary tool M6
    Gang rotary tool spindle speed Max.9,000min-1
    Rotary tool spindle speed of the opposed tool post ø5mm
    Maximum tapping diameter for rotary tool of the opposed tool post M4
    Rotary tool spindle speed of the opposed tool post Max.7,500min-1(OP)
    Maximum drilling diameter for back tool post rotary tool ø5mm(OP) ø5mm
    Maximum tapping diameter for back tool post rotary tool M4(OP) M4
    Rotary tool spindle speed of back tool post Max.7,500min-1(OP) Max.7,500min-1
    Maximum chuck diameter of back spindle ø20mm
    Maximum protrusion length of the back spindle workpiece 30mm
    Maximum drilling diameter in back machining process ø8mm
    Maximum tapping diameter in back machining process M6
    Back spindle speed Max.10,000min-1
    Number of tools to be mounted Max.37 Max.33 Max.44 Max.40
    Tool size Turning tool □12mm(□13mm, □16mm)
    Sleeve ø25mm(GDS107,210)ø19.05mm
    Rapid feed rate All axis(except Y2 axis) 32m/min
    Motors For spindle drive 2.2/3.7kW
    For tool spindle drive(gang tool post) 2.2kW
    For rotary tool drive of Back tool post std std
    For rotary tool drive of the opposed tool post std std
    For back spindle drive 0.75/2.2kW
    For cutting coolant oil 0.4kW
    Input power capacity 7.3kVA
    Center height 1,050mm
    Weight 2,350kg 2,400kg
