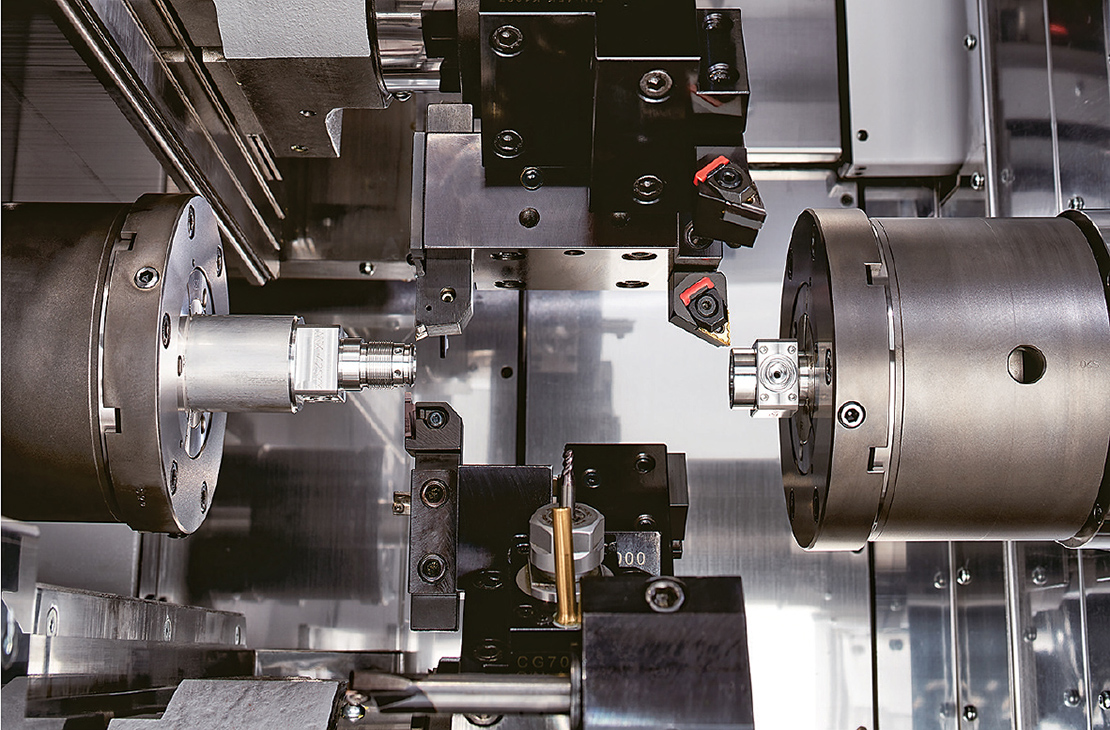

    ANX-42SYY

    Innovative mill-turn centre ANX opens up a new era.

    The latest model ANX features functions that open up a new era for mill-turn centres. Now a fixed head lathe from Miyano brand is equipped with LFV technology for the first time
    utilitising a Fanuc control. This solves the problem of swarf management that has persisted for many years.

    Download Brochure
    ANX-42SYY

    Item

    ANX-42SYY

    Machining capacity

    Maximum machining length

    130 mm

    Bar capacity, round SP1, SP2

    42 mm Dia.

    Slide stroke

    Turret slide HD1 X1

    140 mm

    Z1

    315 mm

    Y1

    70 (±35) mm

    Turret slide HD2 X2

    140 mm

    Z2

    430 mm

    Y2

    70 (±35) mm

    Spindle No.2 X3

    240 (±120)

    Z3

    440 mm

    Spindles

    Number of spindles

    2

    Spindle speed SP1, SP2

    6,000 min-1

    Inner diameter of draw tube SP1, SP2

    46 mm Dia.

    Collet chuck model SP1, SP2

    DIN 173E(42 mm Dia.), HAINBUCH, H-S20

    Power chuck model SP1, SP2

    5″ Power chuck

    Cutting capability SP1, SP2

    Drill 20 mm Dia.

    Tap M12 x 1.75

    Spindle indexing

    Minimum indexing command SP1, SP2

    0.001°

    Turret

    Number of turrets

    2

    Number of tool stations HD1, HD2

    12 St.

    Distance across flat HD1, HD2

    300 mm

    Maximum index clearance HD1, HD2

    505 mm Dia.

    Tool shank size

    20 mm Sq.

    I.D tool hole size

    25 mm Dia.

    Revolving tool

    Number of rev.tool installed

    Max.12/ 12

    Rev.tool drive type

    Single clutch drive

    Rev.tool speed

    6000 min-1

    Cutting capability

    Drill Max. 12 mm Dia.

    Tap Max. M8 x 1.25

    Rapid traverse rate

    Rapid traverse rate X1, X2, X3

    24 m/ min.

    Z1, Z2

    24 m/ min.

    Y1, Y2

    18 m/ min.

    Z3

    30 m/ min.

    Motor for slide X1, X2, X3

    1.8 kw

    Z1, Z2, Z3

    1.2 kw

    Y1, Y2

    1.2 kw

    Motor for spindle SP1, SP2

    11/ 7.5 kw (10 min./ cont.)

    Motor for rev.tool HD1, HD2

    2.2 kw

    Motor for coolant pump

    0.18 x 2

    Motor for medium-pressure coolant (2 MPa)

    1.5 kw (50/60 Hz)

    Power supply

    Voltage

    AC 200/ 220 + 5 % – 10 % 50/ 60 Hz±1 %

    Capacity

    34 KVA

    Air supply

    0.5 Mpa

    Fuse

    125 A

    Tank capacity

    Hydraulic oil capacity

    18 L

    Lubricating oil capacity

    2 L

    Coolant tank capacity

    280 L

    Machine dimensions

    Machine height

    1,900 mm

    Floor space

    2,650 x 1,630 mm

    Machine weight

    6,200 kg
