R01-VI/R04-VI

New R Series – The Solution For Ultra-small-diameter parts.

  • The R01/04 Type I has a compact design with a depth of only 455mm. This means it can be installed in restricted spaces in plants.

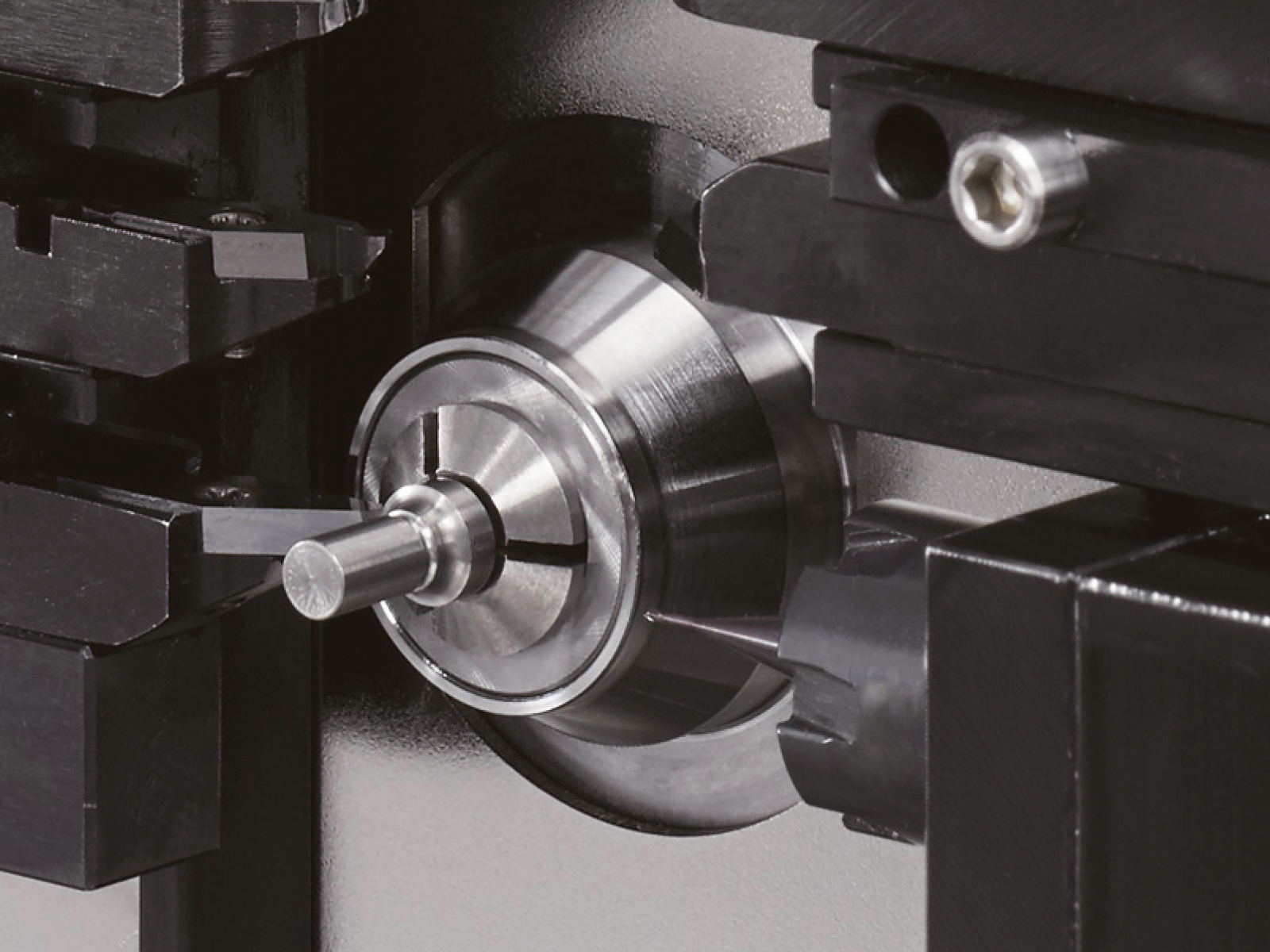

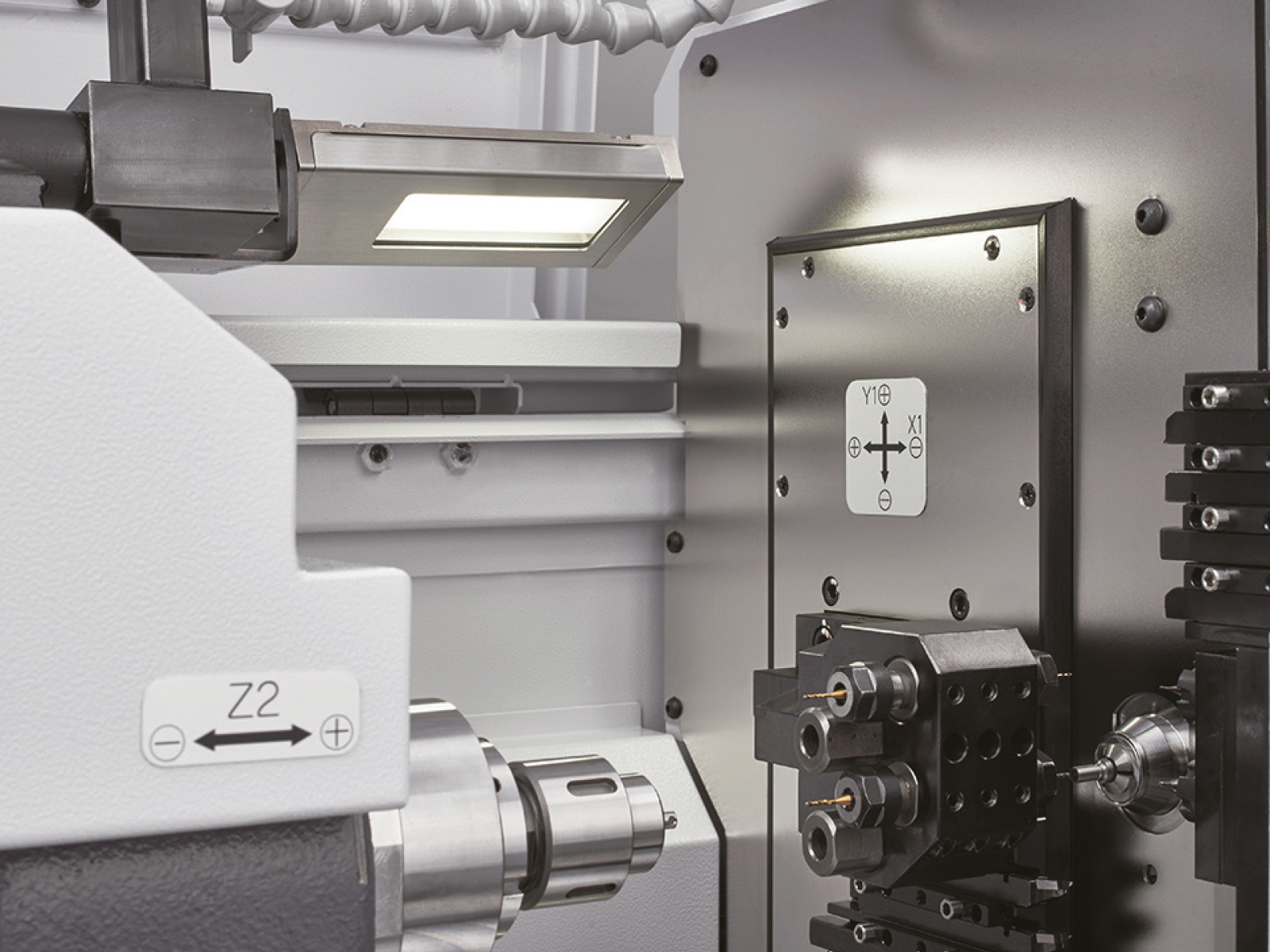

  • All the models in the R/RD series achieve a maximum continuous spindle speed of 20,000 min-1. These spindles can be used together with a rotary guide bushing device.
Download Brochure

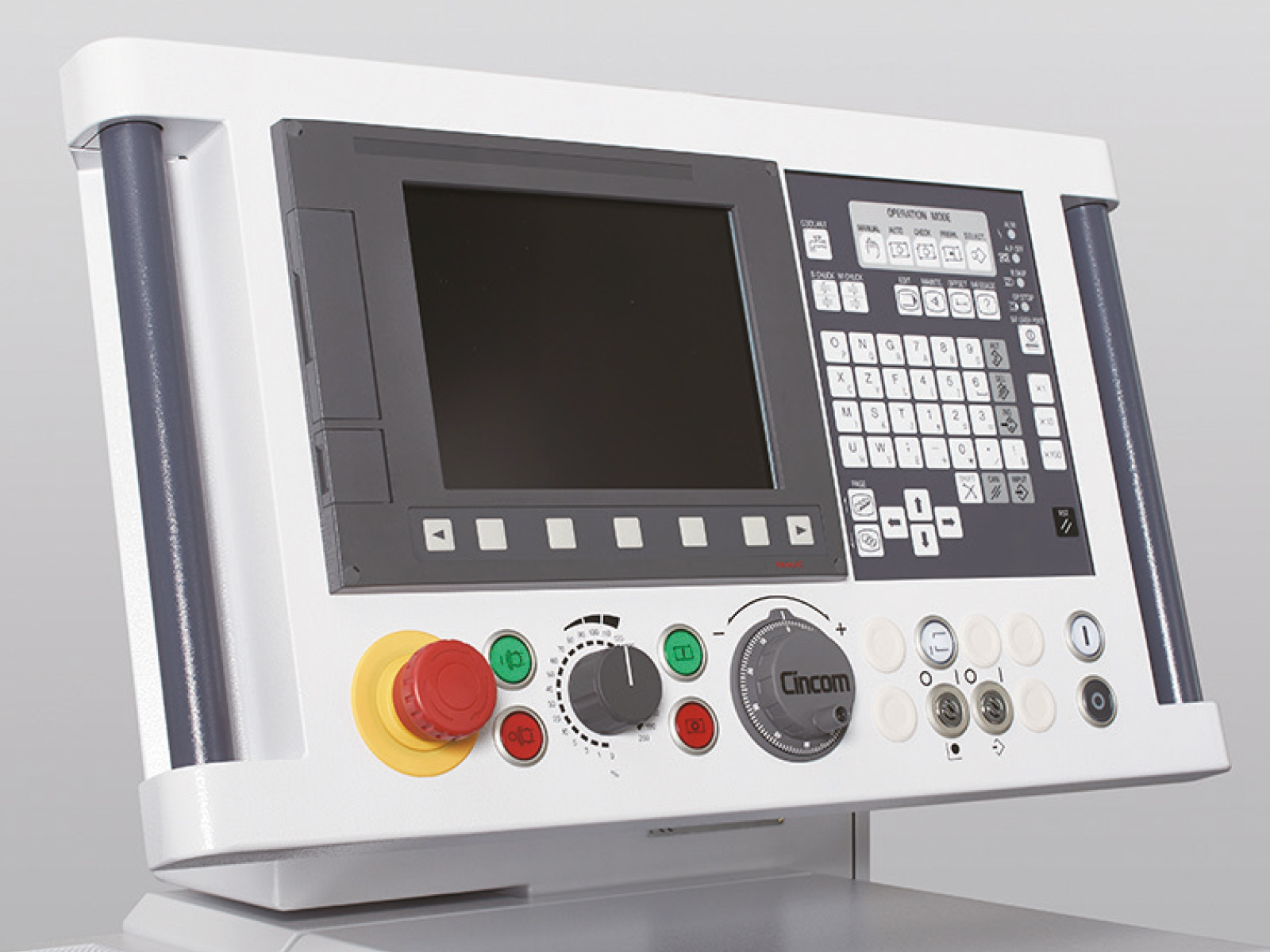

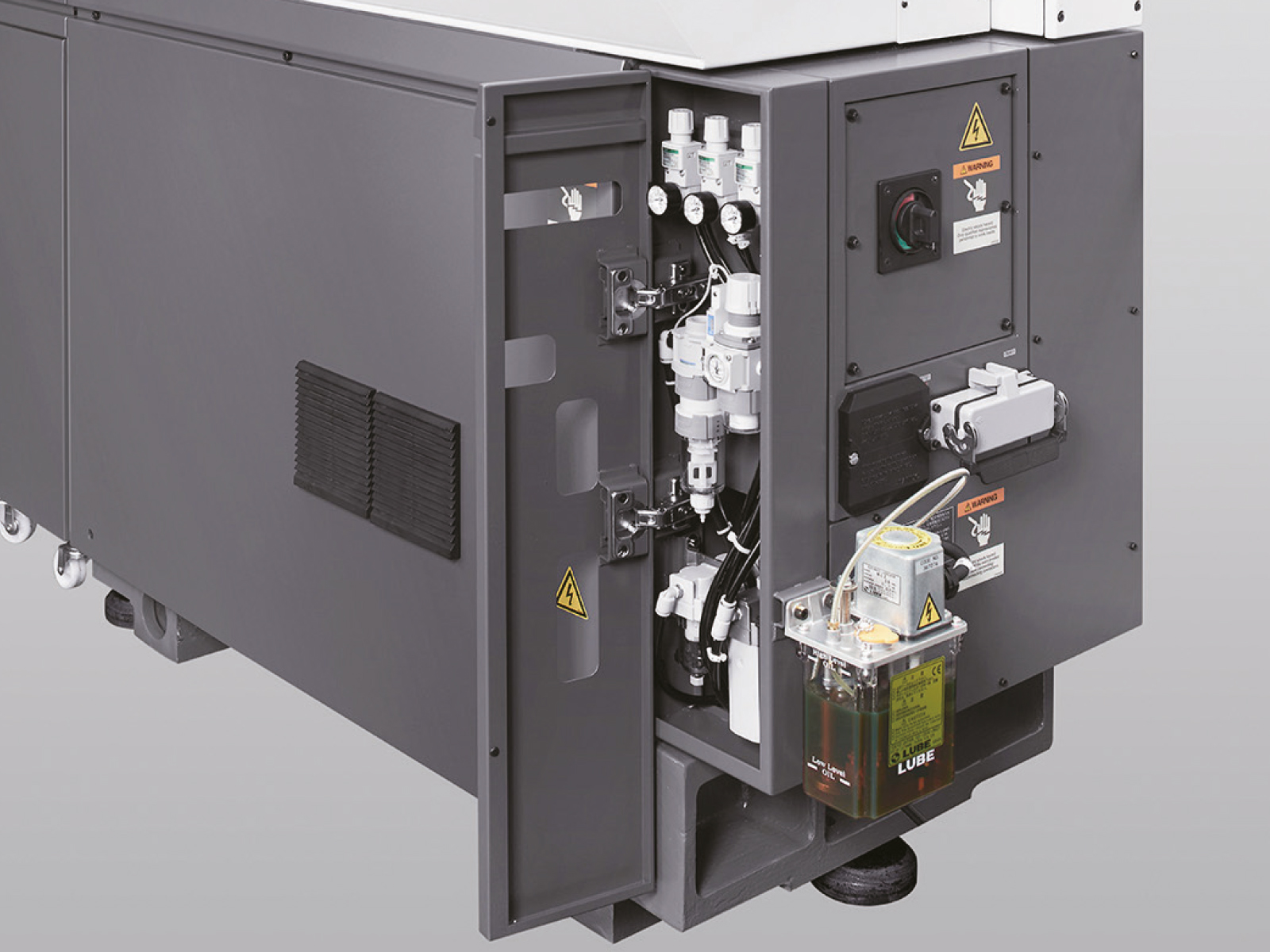

R01-VI/R04-VI
Item R01-VI R04-VI
Maximum machining diameter ø¸4mm
Maximum machining length 40mm
Maximum drilling diameter for main spindle ø¸3mm
Maximum front tapping diameter(tap, die) M3
Spindle through-hole diameter ø¸9mm
Spindle speed Max.20,000min-1
Maximum drilling diameter for rotary tool ø¸2mm
Maximum tapping diameter for rotary tool M2
Spindle speed of the gang rotary tool Max.8,000min-1
Maximum chuck diameter of back spindle ø¸4mm
Maximum protrusion length of the back spindle workpiece 10mm
Maximum drilling diameter in back machining process ø¸2mm
Maximum tapping diameter in back machining process M2.6
Back spindle speed Max.20,000min-1

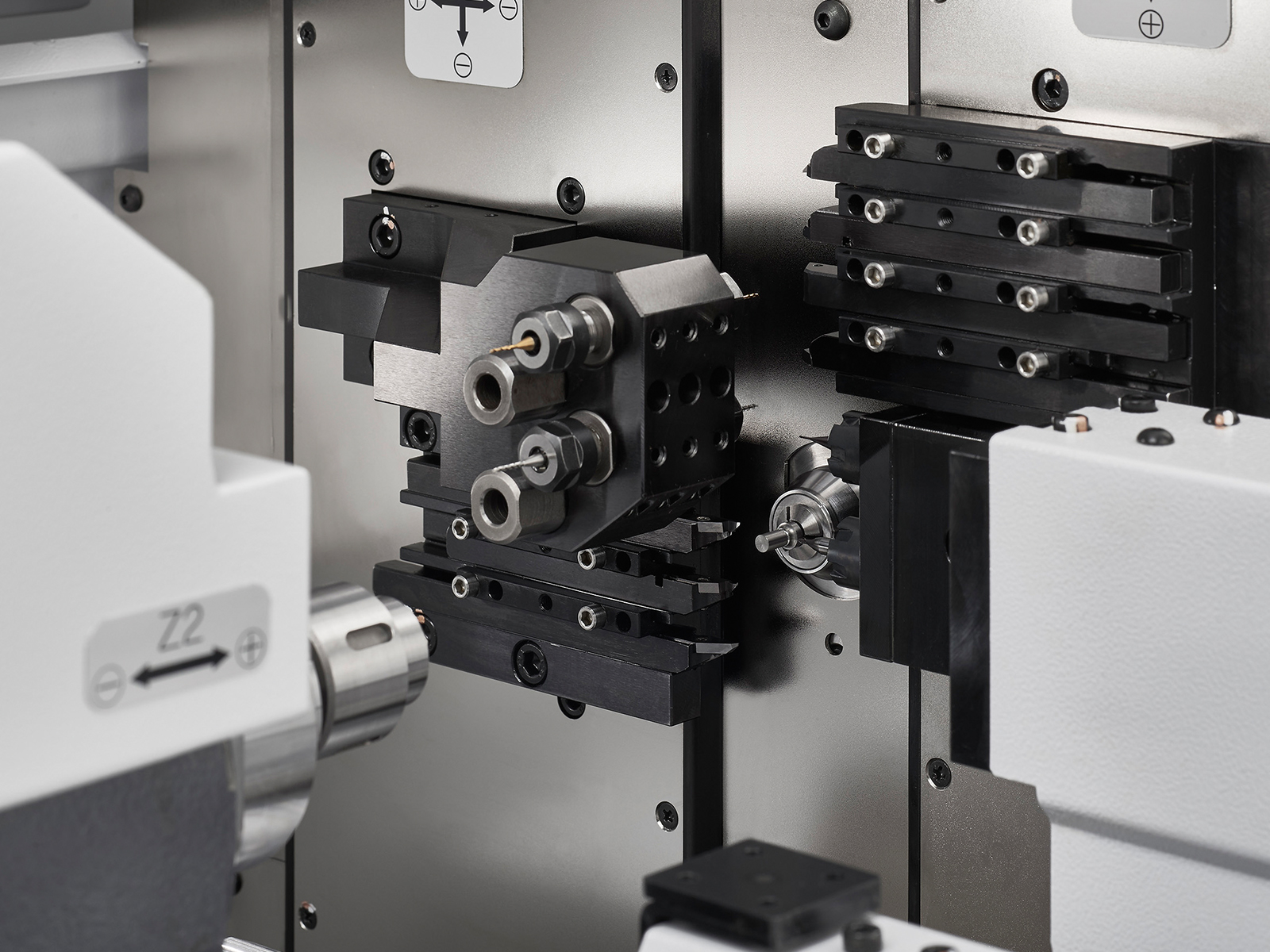

Number of tools to be mounted 17
Tool size Turning tool □8mm
Rapid feed rate X1 axis 30m/min
Y1 axis 30m/min
Z1 axis 30m/min
X2 axis 30m/min
Y2 axis 30m/min
Motors For spindle drive 0.75/1.1kW
For tool spindle drive 0.2kW
For back spindle drive 0.5kW
For cutting coolant oil 0.18kW
Input power capacity 4kVA
Center height 1,000mm
Weight 900kg
