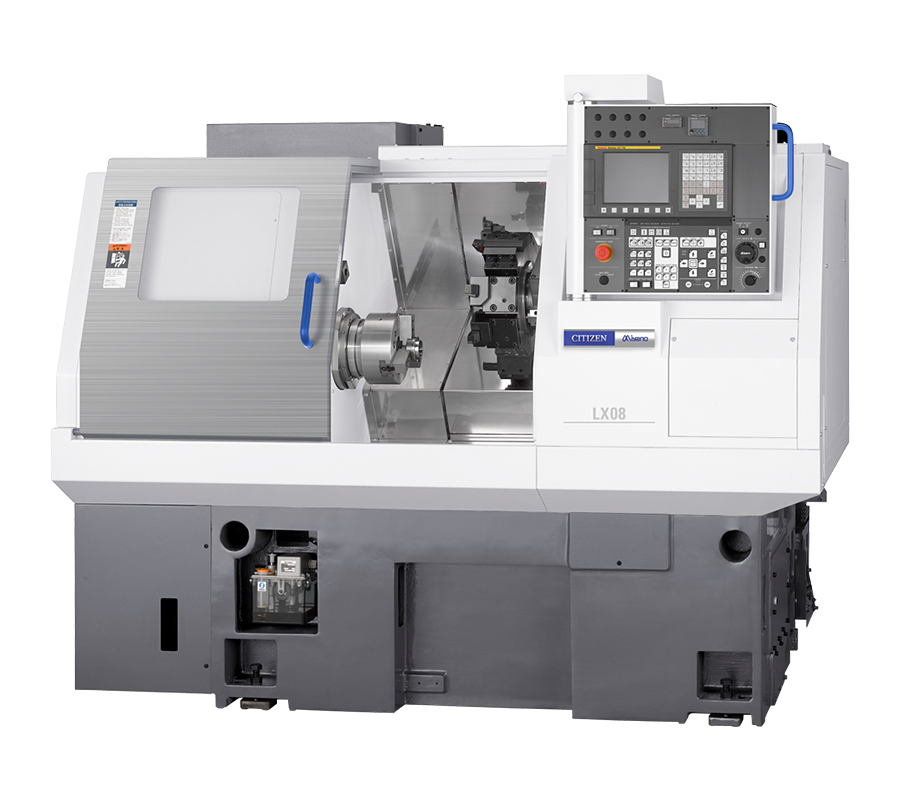

LX-08C

Single turret high precision lathe available with or without a tailstock.

The LX-08C was primarily designed for mid-size flange work and shaft work. It features a rigid mono-cast iron 30°slant bed to give an efficient chip flow.

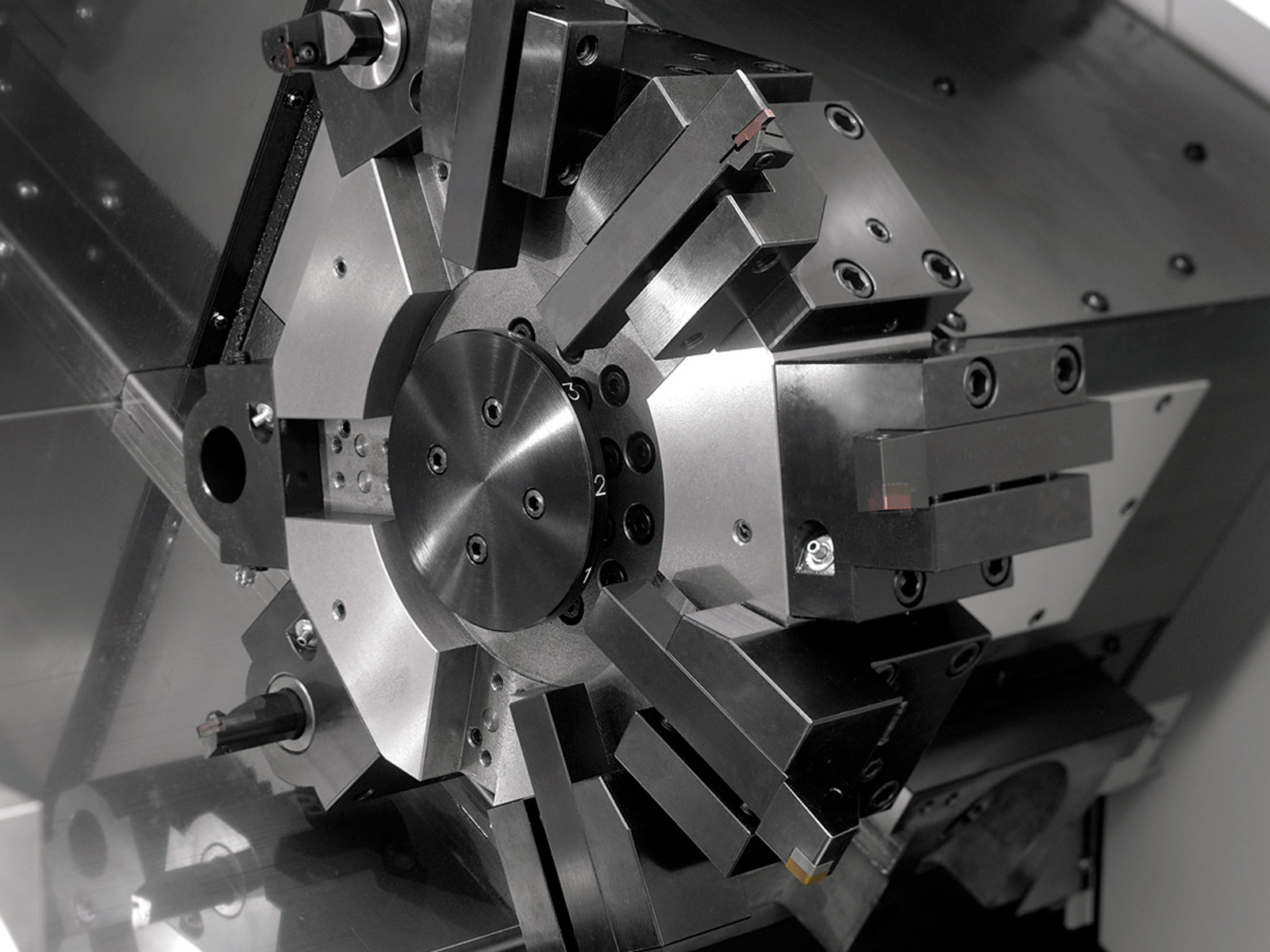

The LX-08C has a 10-station turret.
Tail stock can be chosen from three different types. These options enable you to do efficient, heavy-duty machining on simple work pieces as well as hard material work pieces.

Download Brochure
LX-08C
Items LX-08C

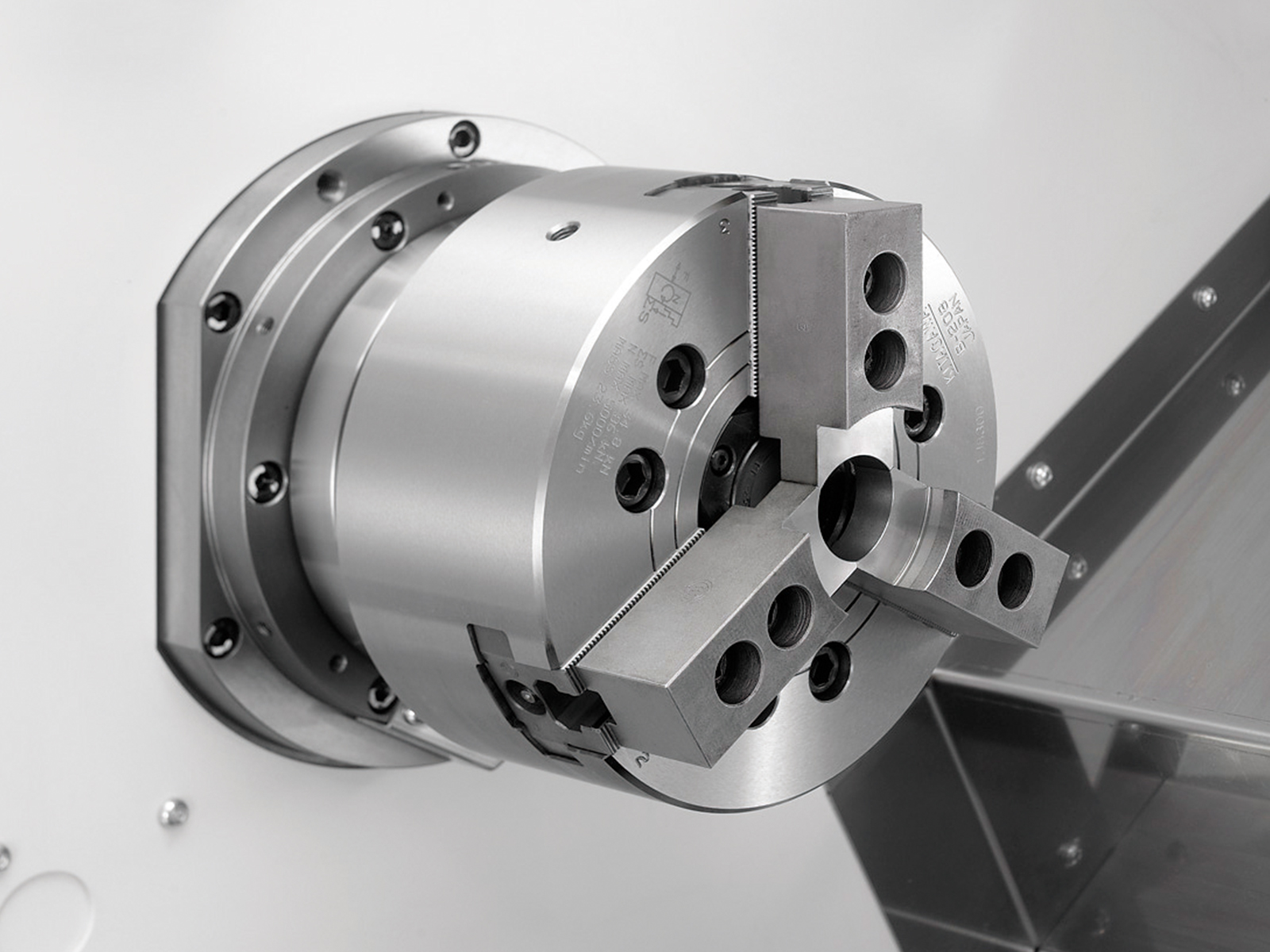

Power Chuck 8″
Maximum machining diameter 210mm
Maximum Machining Length 320mm
Spindle Speed Range 40 – 4,000 min-1
Spindle motor 30min./cont. 11/7.5kW
Type of Turret 10St.Turret
O.D. tool mount method direct tool mount
Shank Height of Square Turning Tool □25mm
Tool hole diameter ø40mm
Slide Travel X axis 175mm
Z axis 435mm
Tail-stock taper size(Opt.) MT4
Quill type tail-stock Max. thrust force 3116N(318kgf)
Slide type tail-stock Max. thrust force 5,488N(560kgf)
Floor space(machine only) 2,035×1,690mm
Machine Weight Approx. 4,500kg
