    The M16: A High-end Model Covering 16mm

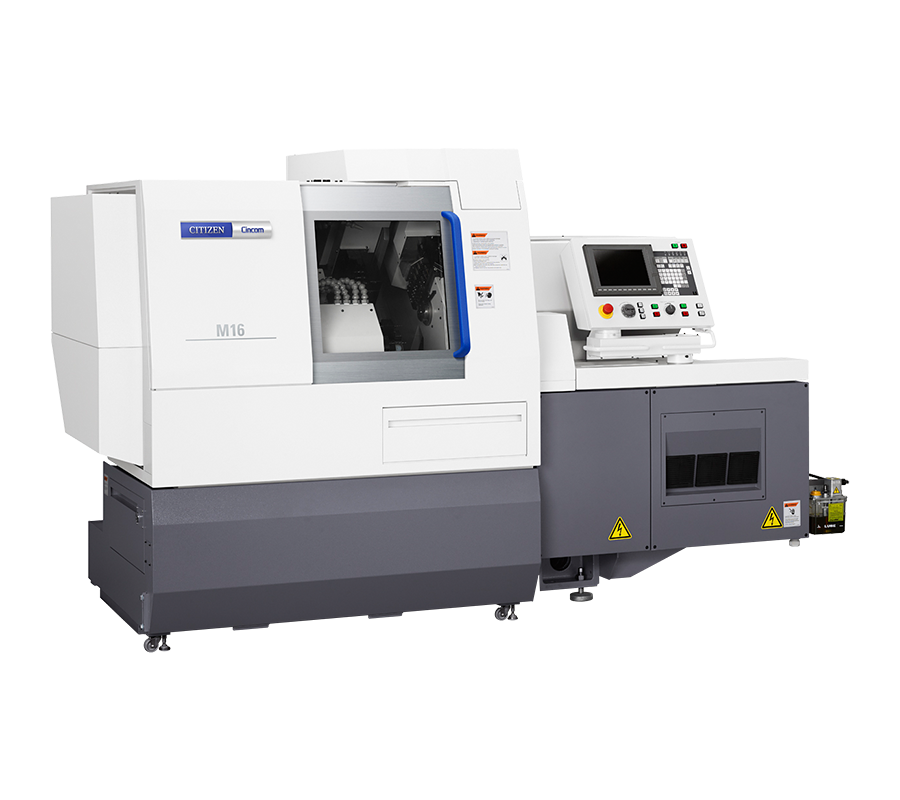

    The M16: A high-end model covering ø16 mm. The B axis function of rotary tools on the gang tool post and the back tool post Y axis function give the advantage of creating complex shapes as well as secondary machining.

    By machining with the optimum conditions for small-diameter workpieces and small-diameter drills/end mills, high productivity can be achieved. The M16 brings advanced functions and raises the level of the basic functions. It permits greater versatility in workpiece shapes and has the edge when machining increasingly complex parts for the IT and medical fields.

    Download Brochure
    M16
    Item M16-V M16-VIII
    Maximum machining diameter ø16mm ø16mm
    Maximum machining length 200mm/chuck 200mm/chuck
    Maximum drilling diameter for main spindle ø10mm ø10mm
    Maximum front tapping diameter(tap, die) M8 M8
    Main Spindle through-hole diameter ø20mm ø20mm
    Spindle speed 12,000min-1 12,000min-1
    Maximum chuck diameter of back spindle ø16mm ø16mm
    Maximum protrusion length of the back spindle workpiece 125mm 125mm
    Maximum drilling diameter in back machining process ø8mm ø8mm
    Maximum tapping diameter in back machining process M6 M6
    Back spindle speed 12,000min-1 12,000min-1
    Gang tool rotary tool maximum drilling diameter ø5mm ø5mm
    Gang tool rotary tool maximum tapping diameter M5 M5
    Spindle speed of the gang rotary tool 8,000min-1 8,000min-1
    Maximum drilling diameter for turret rotary tool ø5mm ø5mm
    Maximum tapping diameter for turret rotary tool M5 M5
    Spindle speed of the gang rotary tool 8,000min-1 8,000min-1
    Maximum drilling diameter for back rotary tool ø5mm ø5mm
    Maximum tapping diameter for back rotary tool M5 M5
    Spindle speed of the back rotary tool 8,000min-1 8,000min-1
    Number of tools to be mounted 36+α 36+α
    Tool size Turning tool □10mm □10mm
    Sleeve ø19.05mm ø19.05mm
    Rapid feed rate X1 axis 32m/min 32m/min
    X2 axis 16m/min 16m/min
    X3 axis 32m/min 32m/min
    Y1 axis 32m/min 32m/min
    Y2 axis 8m/min 8m/min
    Y3 axis 32m/min 32m/min
    Z1 axis 32m/min 32m/min
    Z2 axis 32m/min 32m/min
    Z3 axis 32m/min 32m/min
    B axis stroke -45 to +90 deg.
    Motors For spindle drive 2.2/3.7kW 2.2/3.7kW
    For back spindle drive 0.75/1.5kW 0.75/1.5kW
    For tool spindle drive(gang tool post) 0.69kW 0.69kW
    For tool spindle drive(turret) 0.69kW 0.69kW
    for back Tool spindle drive 0.75kW 0.75kW
    B1 axis tool drive 0.4kW
    For cutting coolant oil 0.4kW 0.4kW
    Center height 1,150mm 1,150mm
    Weight 2,900kg 2,950kg
