    BNA-42DHY

    The BNA series packs sophisticated functions and high accuracy into a space-saving compact body.

    The BNA series aims to set the new standard for machines for cutting bar stock, based on the concept of “space savings and sophisticated functions”.
    The BNA-42DHY achieves further shortening of cycle times by adding a compact sub-turret to provide superimposition machining and other forms of simultaneous machining.
    The BNA series offers high performance in compact space, round-the-clock stability and accuracy; and ease of use for fast set-ups and quick changeovers.

    Download Brochure
    BNA-42DHY
    Items BNA-42DHY3
    Machining Capacity and Chuck System
    Maximum Machining Diameter of Bar Work SP1/SP2 ø42/34mm
    Maximum Machining Length 150mm
    Power Chuck SP1/SP2 5″/4″
    Collet Chuck Type SP1 Hardinge S20, DIN173E, B&S#22D, JPN34, Hainbuch SP2 DIN173E, B&S#22D JPN
    Spindle
    Spindle Nose SP1/SP2 Special Flat Type
    Spindle motor(15min. Rating/Cont.) SP1 7.5/5.5kW
    SP2 5.5/3.7kW
    Spindle Speed Range SP1 60 – 6,000min-1
    SP2 50 – 5,000min-1
    Turret
    Type of Turret SP1 8St.Turret
    SP2 6St.Turret
    Shank Height of Square Turning Tool □20mm
    Diameter of Drill Shank ø25mm
    Turret Indexing & Clamp Method AC Servo motor & curvic coupling
    Slide Stroke X1 axis 140mm
    Z1 axis 235mm
    Y axis 70mm(±35)
    X2 axis 140mm
    Z2 axis 360mm
    Indexing Time 0.2Sec./1St.
    Revolving Tools
    Maximum Number of Revolving Tools SP1/SP2 8/—
    Tool Spindle Speed Range 50 – 5,000min-1
    Revolving Tool Motor 2.8/1.0kW
    Machine Dimensions
    Machine Height 1,660mm
    Floor Space 2,240×1,450mm
    Machine Weight 3,000kg

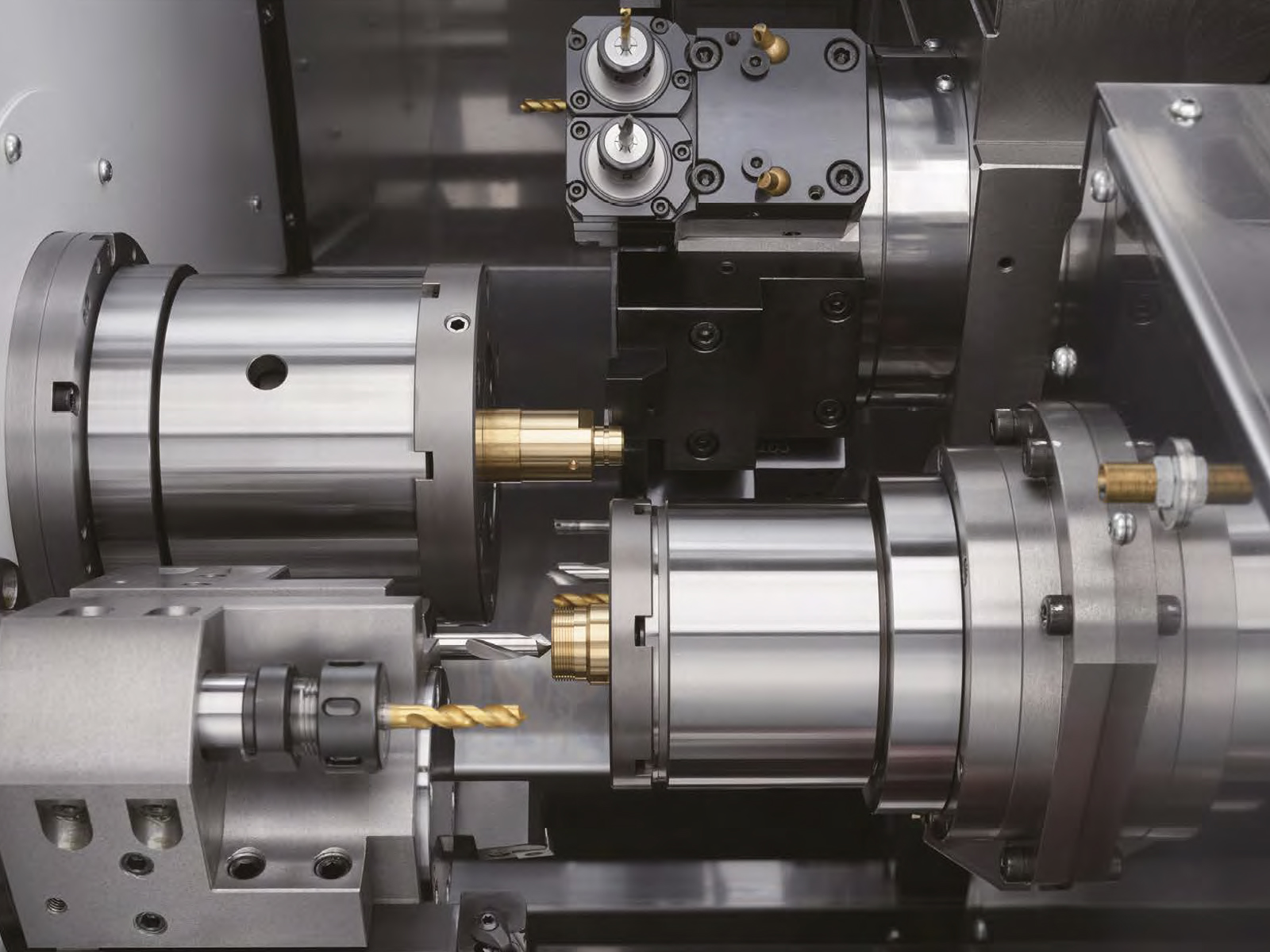

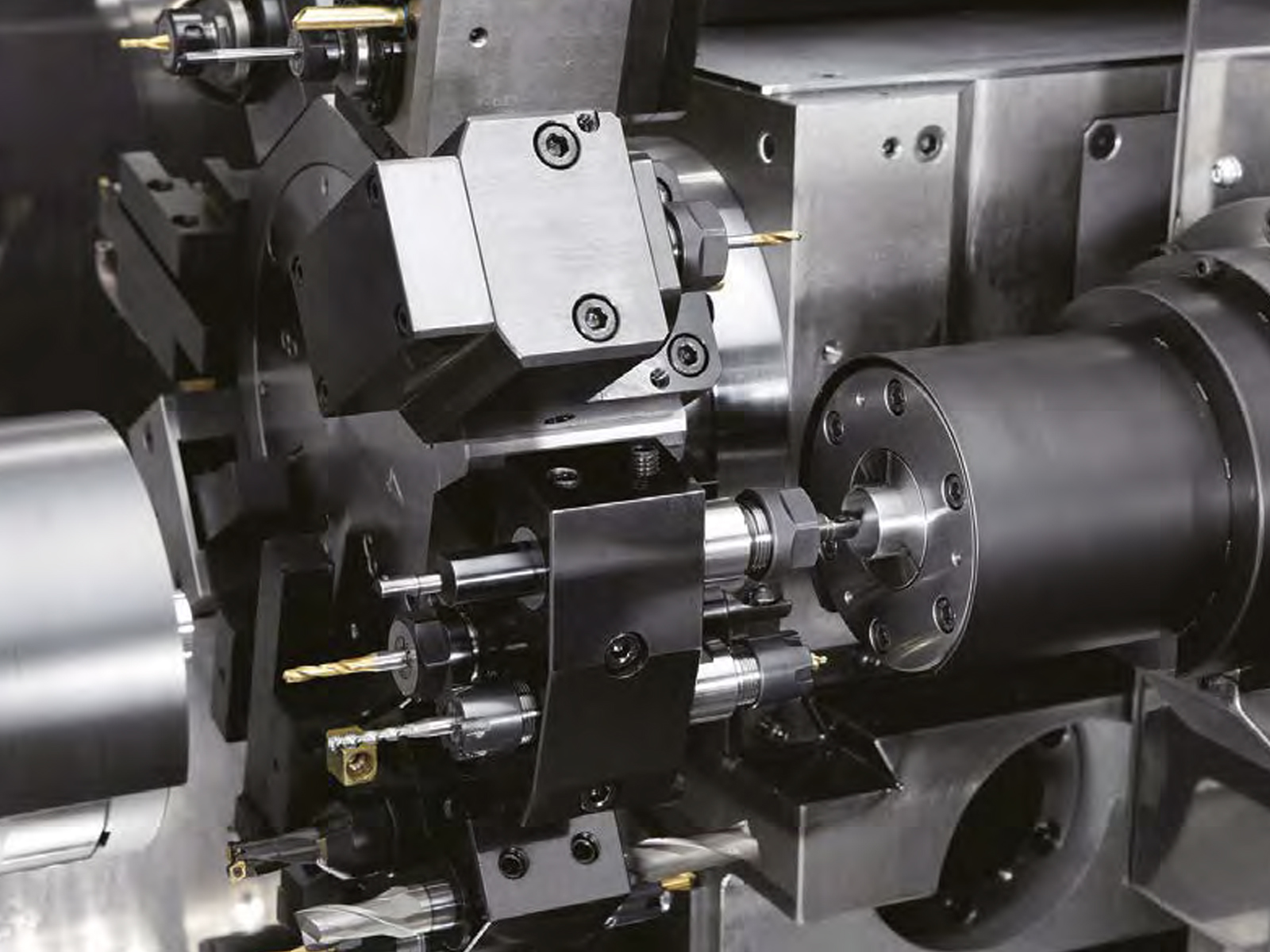

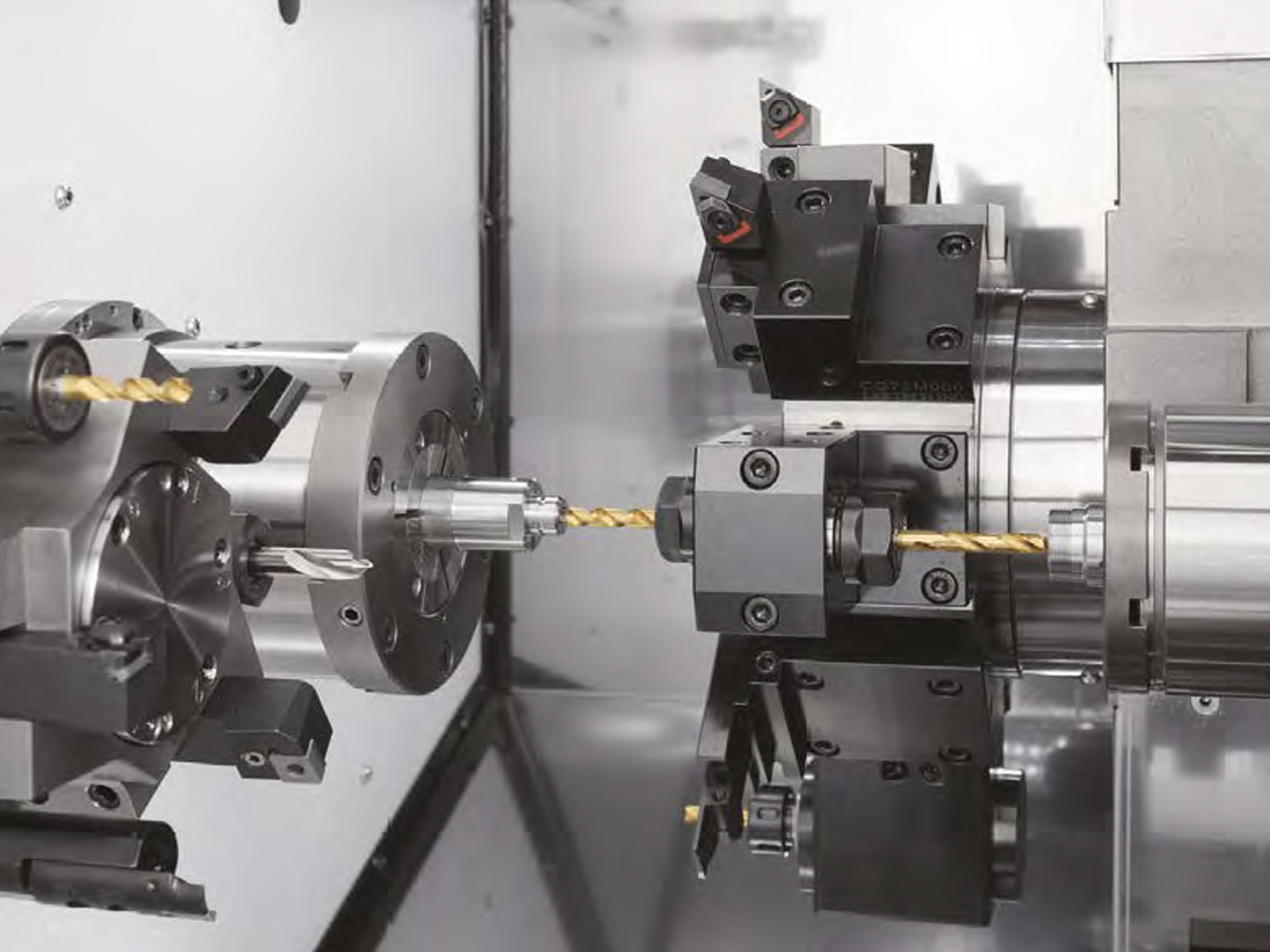

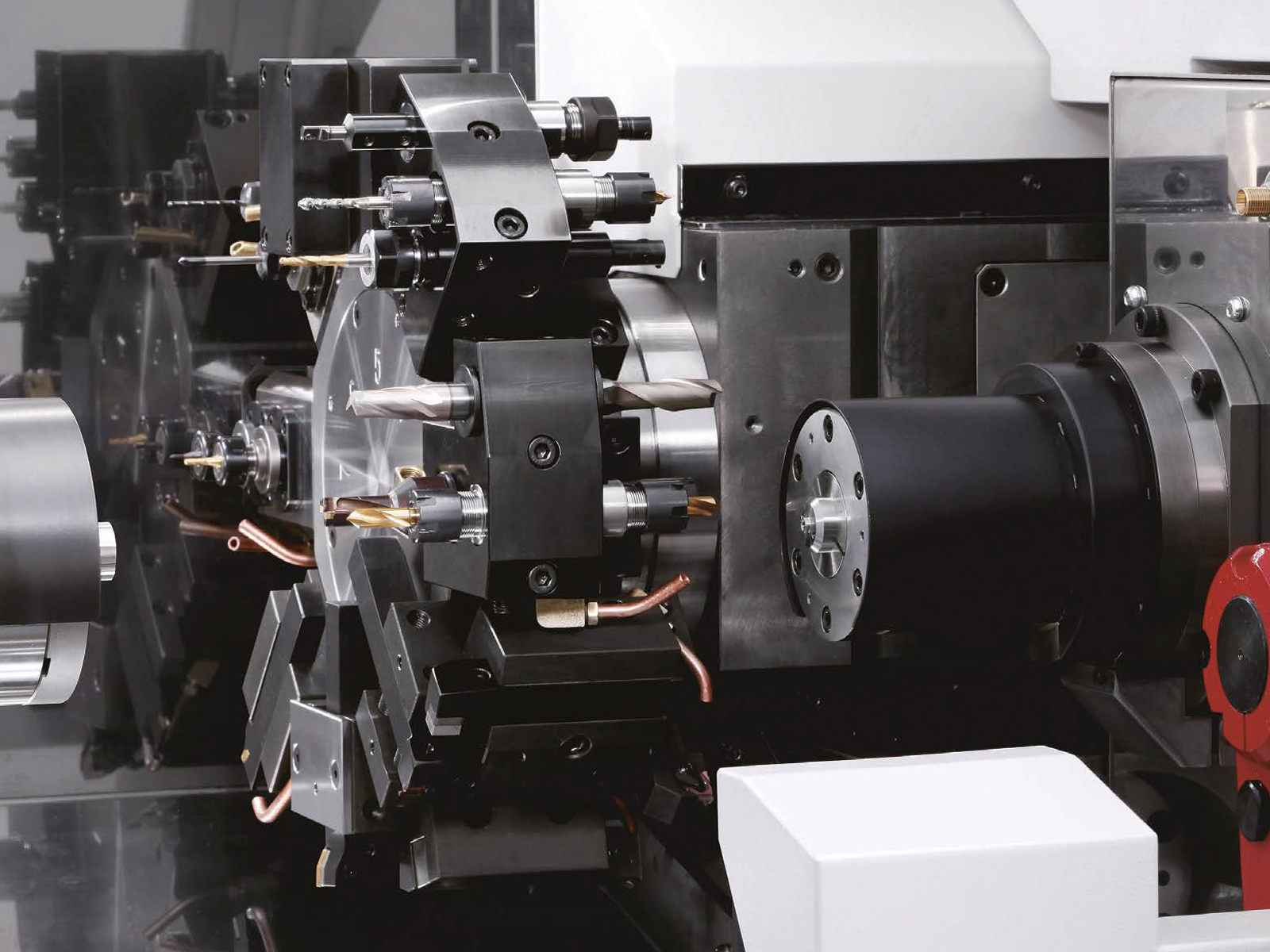

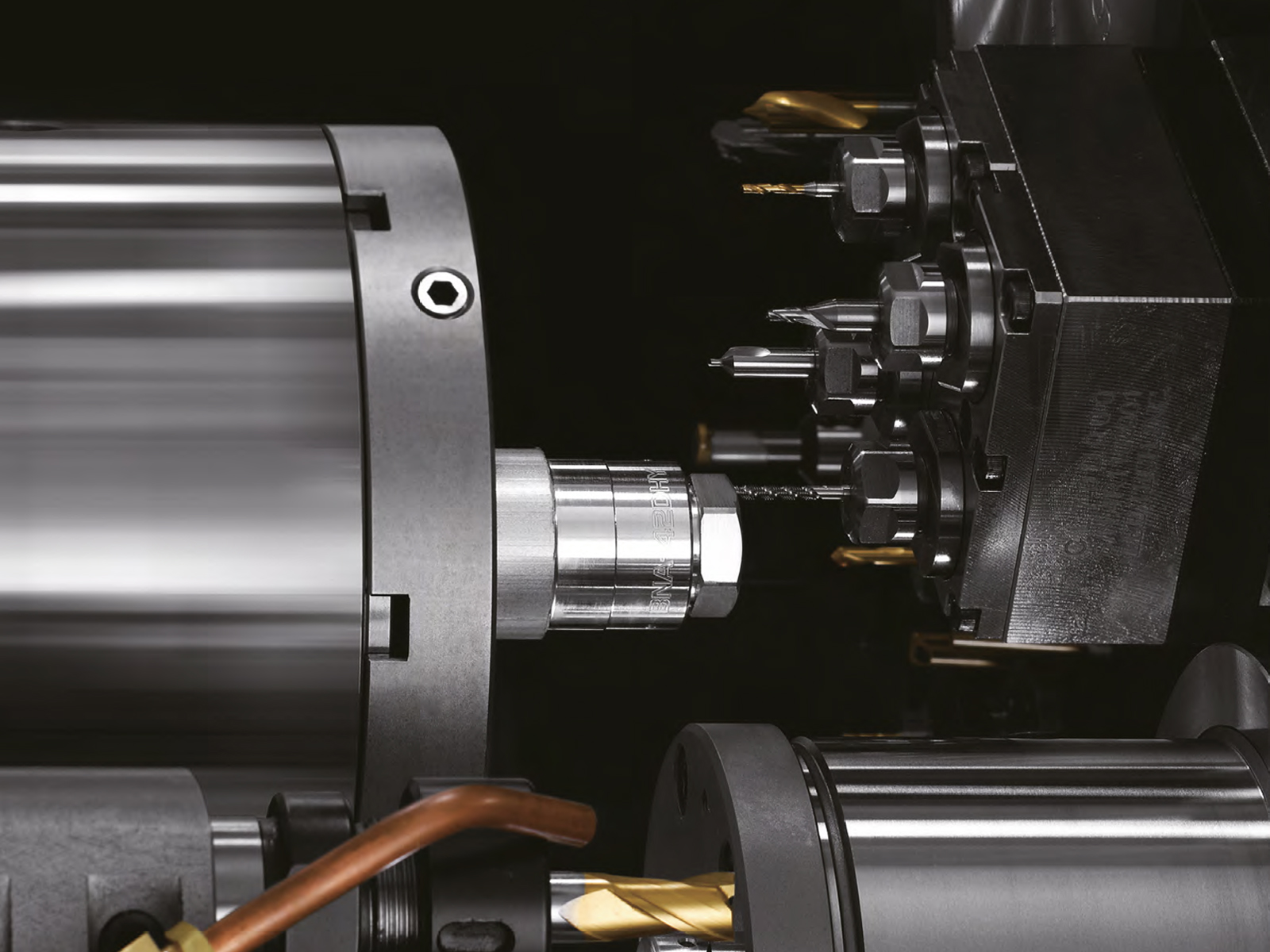

    See what's inside
