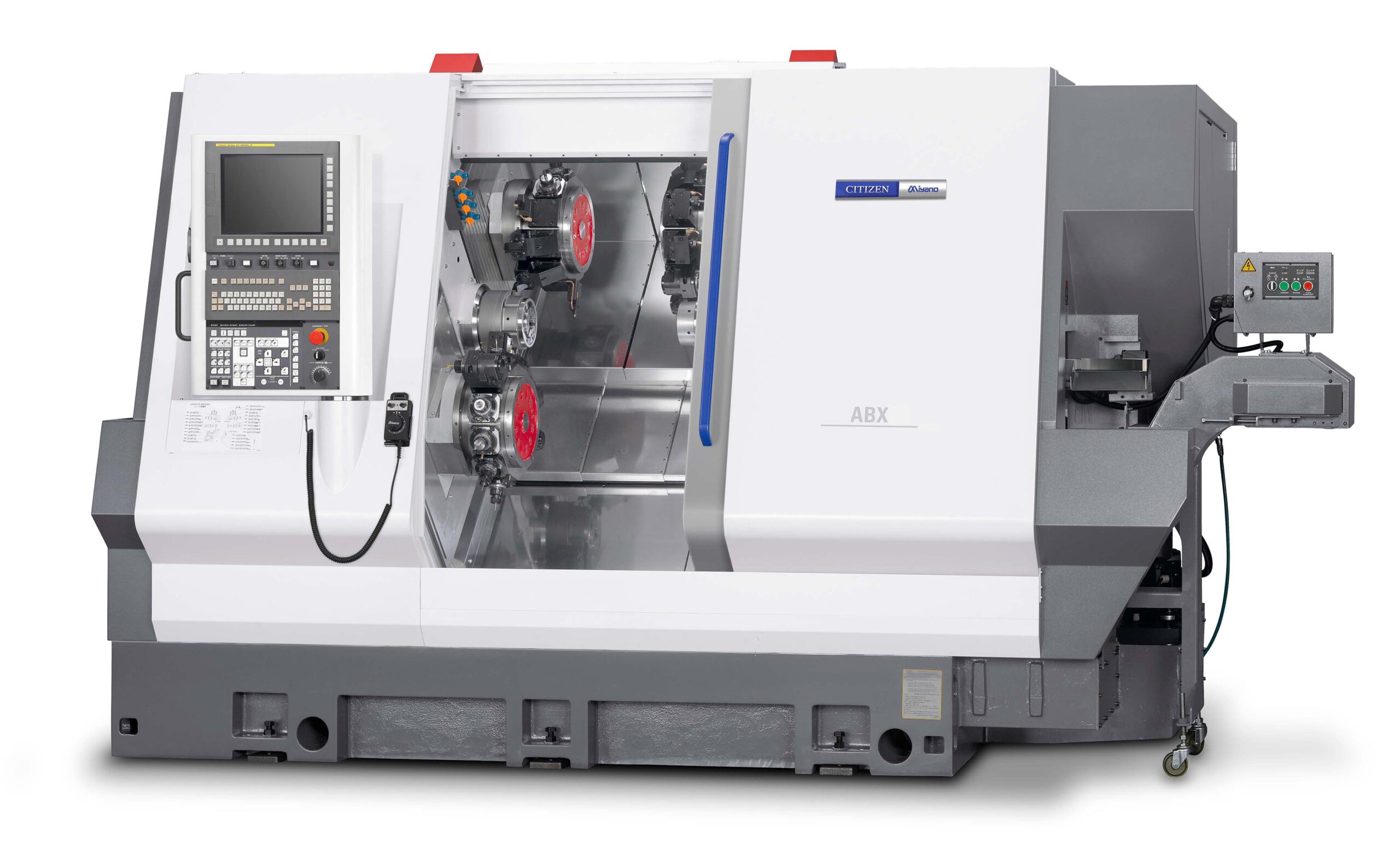

    ABX-64 (80mm max dia)

    Latest additions to the ever popular range of ABX models. Now with the option to have increased spindle capacity to 80mm diameter.

    Download Brochure
    ABX-64 (80mm max dia)



    ItemABX-THY2ABX-SYY2
    80THY280SYY2
    Machining capacity
    Maximum work lengthSP1125 mm125 mm
    SP2125 mm
    Maximum work diameter
    for bar workSP180 mm Dia.80 mm Dia.
    SP2ø51mm
    for power chuckSP1165 mm Dia.φ165mm
    SP2ø165mm
    Spindle
    Number of spindles2
    Spindle speedSP150 – 2,750 min-150 – 2,750min-1
    SP250 – 5,000 min-1
    Inner diameter of draw tubeSP182 mm Dia.82 mm Dia.
    SP2φ52mm
    Chucking systemSP1, SP2Hydraulic cylinder
    Type of collet chuckSP1S collet system
    DIN190EDIN190E
    SP2DIN177E
    Type of Power chuckSP16″ Hydraulic chuck
    SP26″ Hydraulic chuck
    Turret
    Number of turrets32
    Turret stationsHD1, HD2, HD312 st.
    Tool shank sizeHD1, HD2, HD320 mm Sq.
    I.D tool hole sizeHD1, HD2, HD325 mm Dia. /40mm Dia.
    Index timeHD1, HD2, HD30.25 SEC/ 1POS
    Rapid traverse rate HD1X116 min-1
    Z120 min-1
    Y112 min-1
    HD2X216 min-1
    Z230 min-1
    Y212 min-1
    HD3X316 min-1
    Z320 min-1
    Y312 min-1
    SP2Zs30 min-1
    Revolving tool (Option)
    Number of revolving toolsHD1, HD2, HD312 (MAX.36)12 (MAX.24)
    Maximum spindle speed6,000 min-1
    Machining capacityDrillingMAX. 20 Dia.
    TappingMAX. M14×2
    End millMAX.φ16
    Tank capacity
    Hydraulic tank capacity10 L
    Lubricating tank capacity4 L
    Coolant tank capacity400 L
    Machine dimensions
    Machine height2,222 mm
    Floor space3,290 × 2,204 mm
    Machine weight11,350 Kg10,600 Kg
    Spindle motorSP1AC 15/ 11 Kw
    SP2AC 7.5/5.5Kw
    Revolving tool motorHD1, 2, 3AC 4.5 Kw
    Power supply
    VoltageAC 200/ 220 V ± 10% 50/60Hz±1Hz
    Capacity49 KVA48 KVA
    Air supply0.5 MPa (5 kgf/ cm2)
    Fuse150 A150 A

    Pneumatic, Spindle brake, Revolving tools and driving unit, Thermo revision, Splash guard interlock, High pressure coolant, Work ejector No2, Parts catcher (Servo type).

    Optional accessories:

    100V, Collet chuck system, 6″ Power chuck, Air blow, No.2 spindle inner high pressure coolant & air blow, Coolant level switch, Automatic power shut-off and extinguisher, Automatic power shut-off, Chip conveyor, Chip box, Parts carrier, Coolant mist collector, Blast-proof dumpers, Tool setter, Signal light (3 steps), Total & preset counter, Bar feeder interface, Filler tube, Spindle inner bushing, Drill breakage detector, etc.
