    L12

    The L12: Handling All Small-diameter Work with 7-axis Control

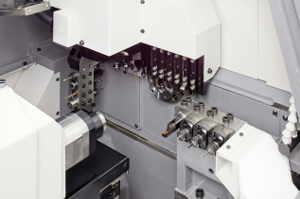

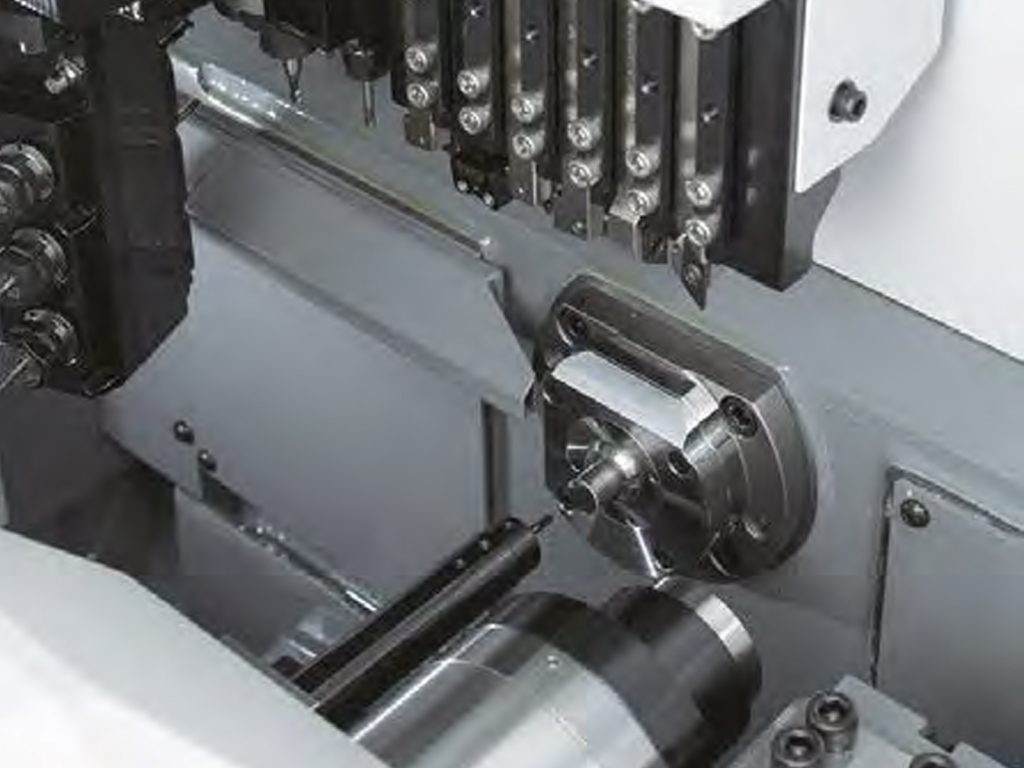

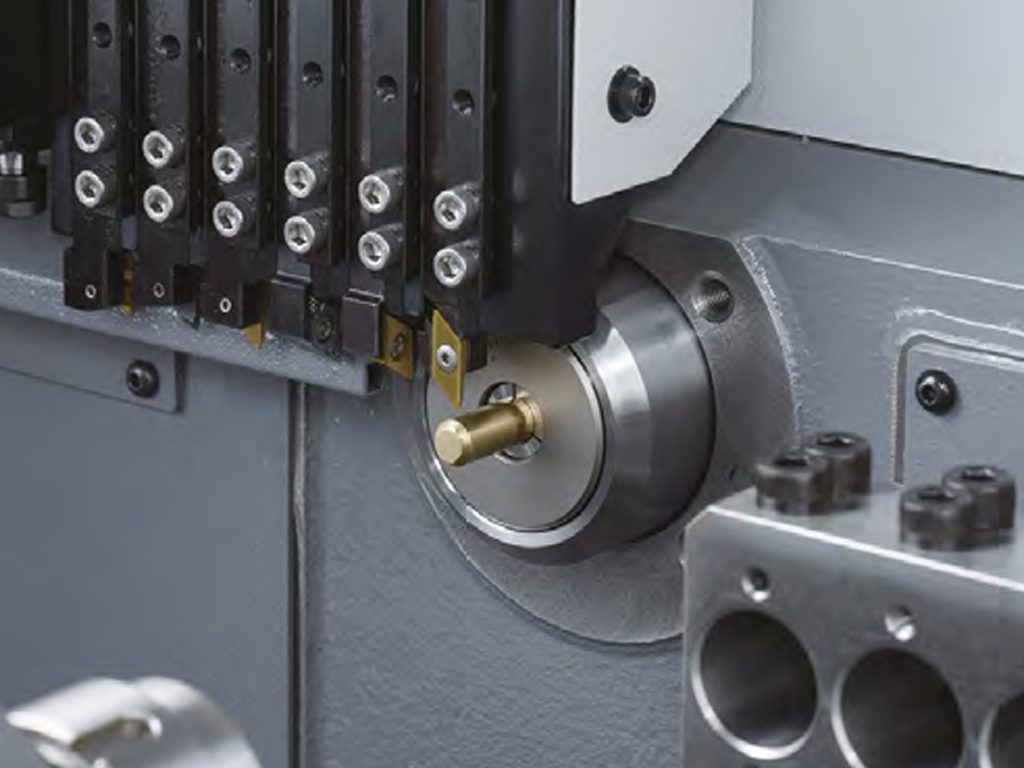

    Detachable Guide Bushing and 15,000 min-1 High-speed spindle.
    Machining using a guide bushing is a useful method for long, slender work-pieces. On the other hand, using a interchangeable guide bushing with short work-pieces leaves a long remnant bar, increasing material costs. The optimum machine configuration differs according to the work-piece to be machined, and up until now a variety of different machines have been required. The L12 solves this problem.

    Download Brochure
    L12
    ItemL12VII
    Maximum machining diameterø12mm/ ø16mm Option
    Maximum machining lengthGB machine135mm/chuck
    GBL machine30mm/chuck
    Maximum drilling diameter for main spindleø8mm
    Maximum tapping diameter for main spindle (tap,die)M6
    Main Spindle through-hole diameterø20mm
    Spindle speed15,000min-1
    Maximum drilling diameter for gang rotary toolø5mm
    Maximum tapping diameter for gang rotary toolM4
    Gang rotary tool spindle speed10,000min-1
    Maximum chuck diameter of back spindleø12mm
    Maximum protrusion length of the back spindle workpiece30mm
    Maximum drilling diameter in back machining processø6mm
    Maximum tapping diameter in back machining processM5
    Back spindle speed10,000min-1
    Number of tools to be mountedMax.27
    Tool sizeTurning tool□10mm
    Sleeveø19.05mm
    Rapid feed rateAll axis35m/min
    MotorsFor spindle drive2.2/3.7kW
    For tool spindle drive0.75kW
    For back spindle drive0.4/0.75kW
    For cutting coolant oil0.25kW
    Input power capacity8kVA
    Center height1,000mm
    Weight1,700kg
    For rotary tool drive of Back tool post0.5kW
    Maximum drilling diameter for back tool post rotary toolø5mm
    Maximum tapping diameter for back tool post rotary toolM4
    Rotary tool spindle speed of back tool post9,000min-1

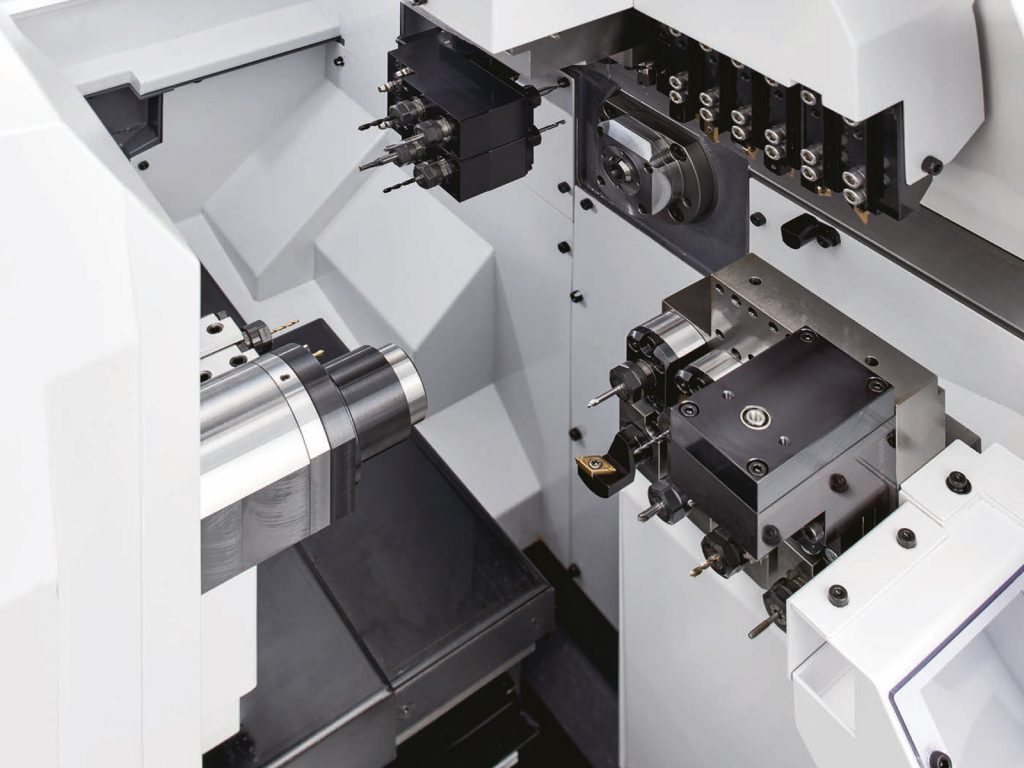

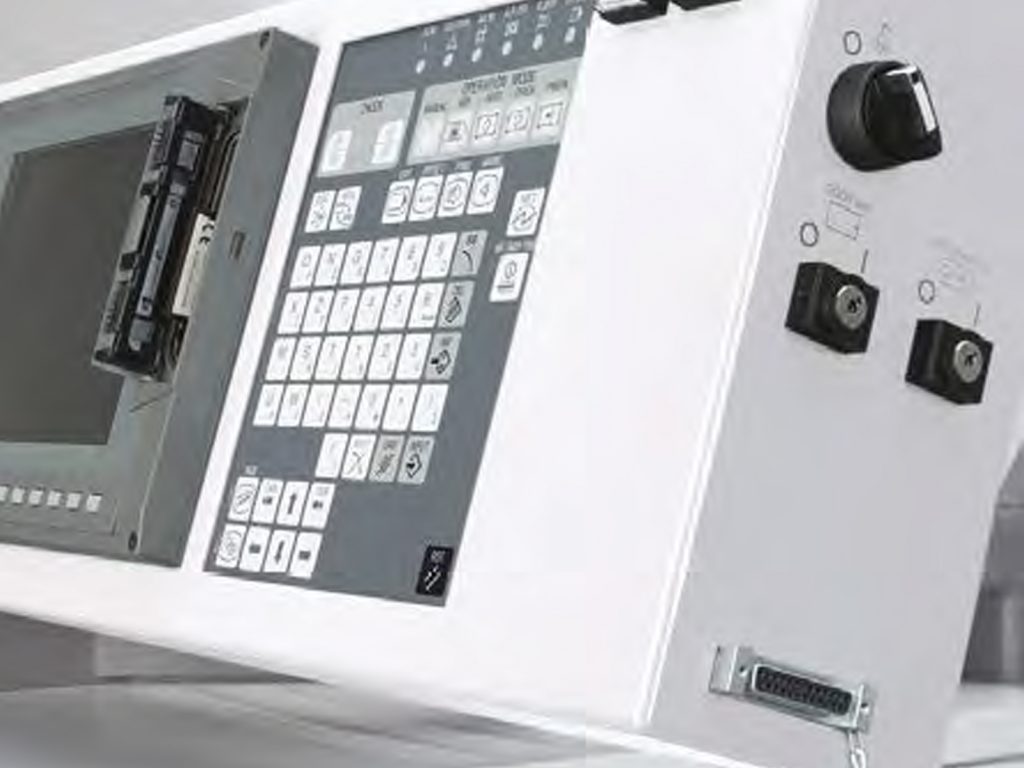

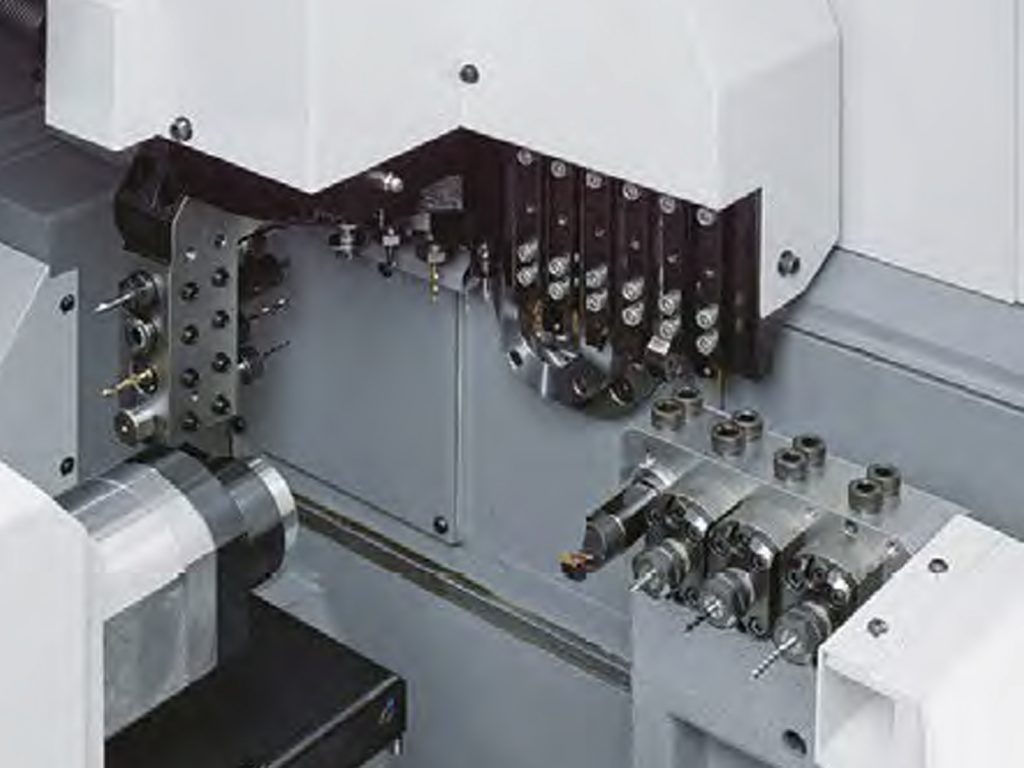

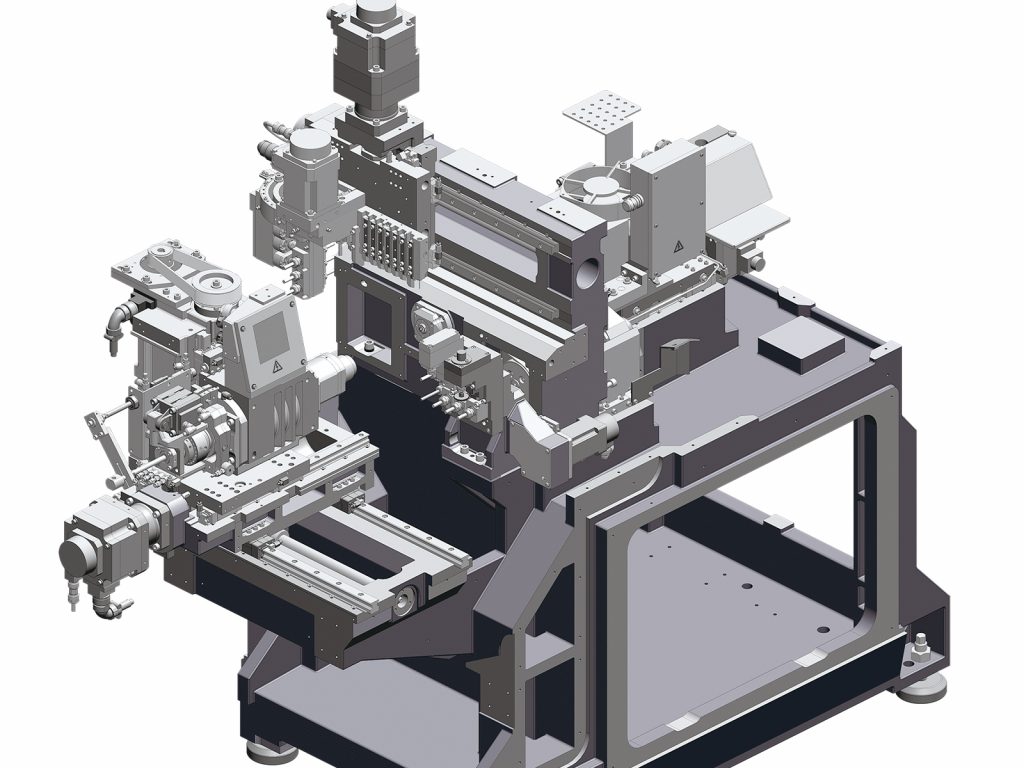

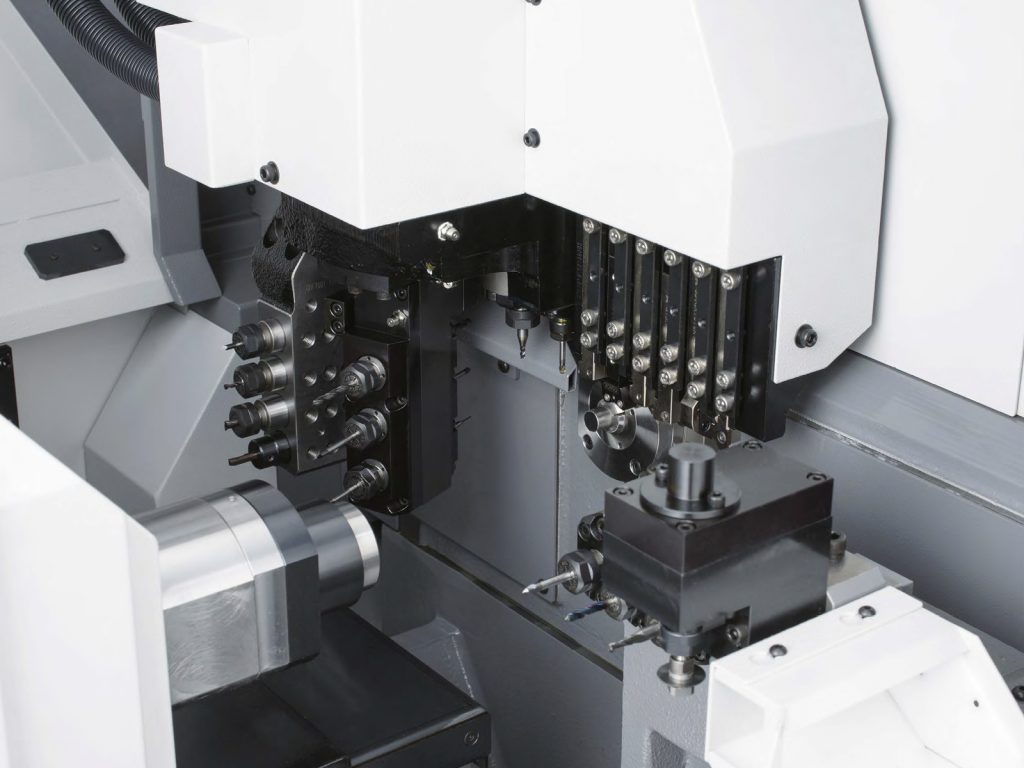

    See what's inside

    Take a tour of the L12
