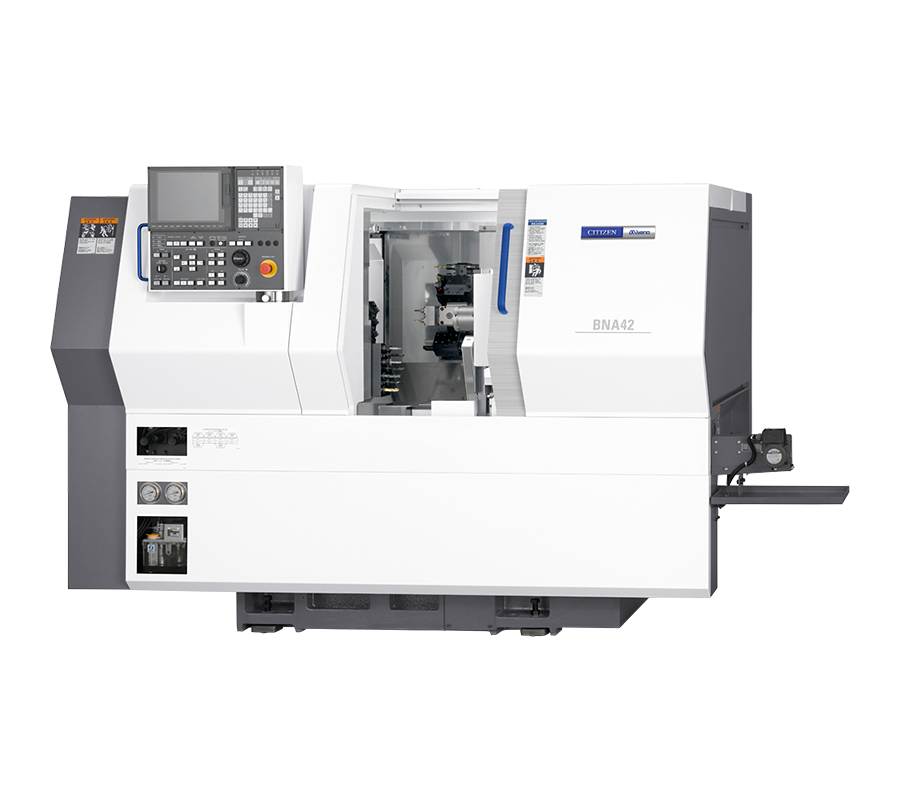

The BNA42GTY CNC Fixed Head combines gang tool speed with turret flexibility for high-efficiency, complex machining.

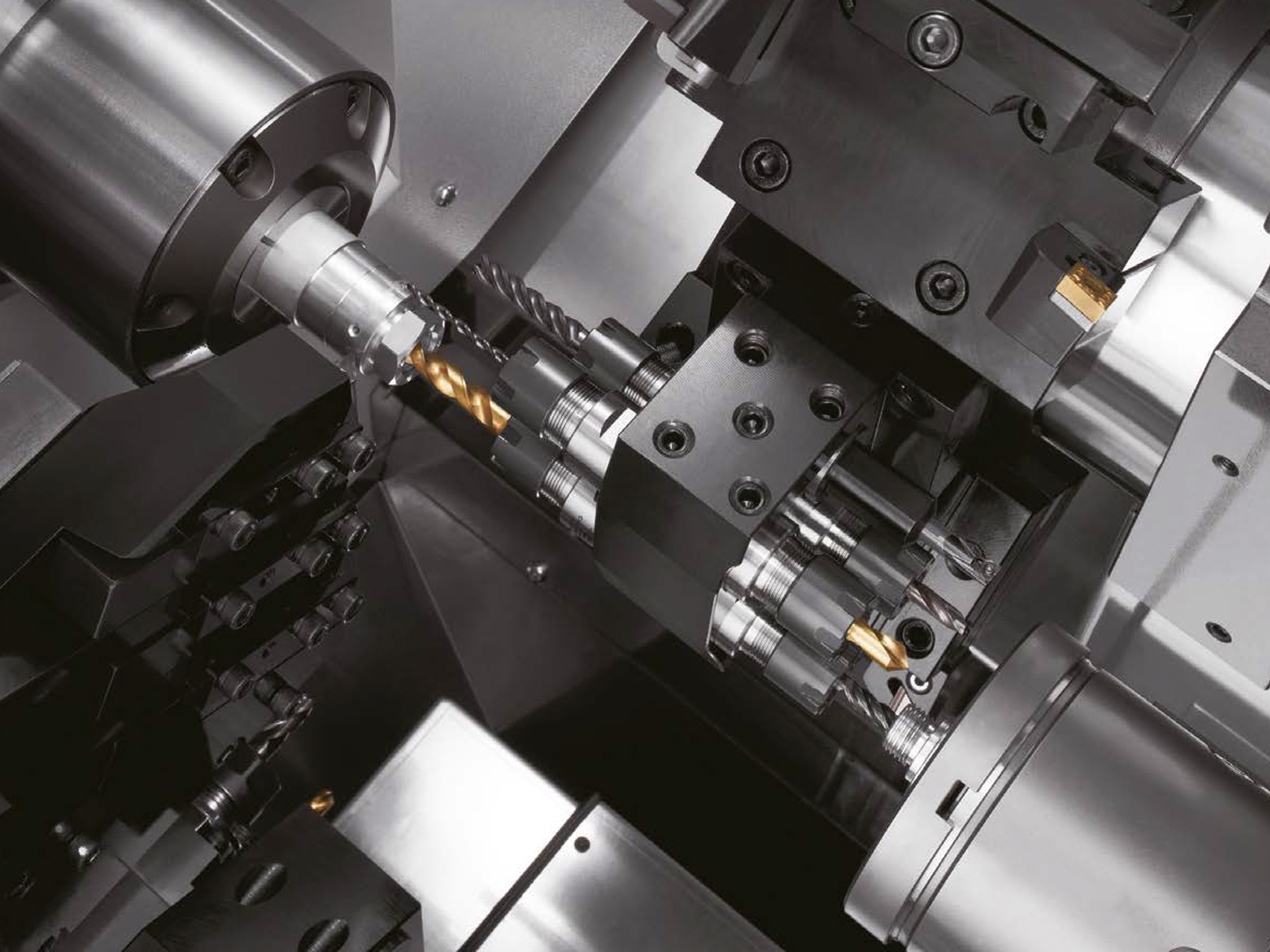

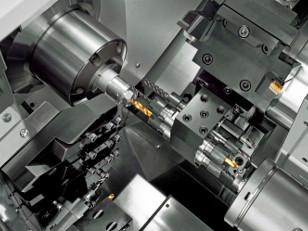

It features two spindles, a Y-axis turret, and a high-speed gang tool slide for simultaneous front and back machining.
Advanced functions like balance cutting, pinch milling, and 3-axis overlapping improve productivity and cycle time.
LFV Technology enhances chip control, especially with difficult materials and deep-hole drilling. LFV also reduces swarf build-up and extends tool life, ensuring consistent, clean machining performance.

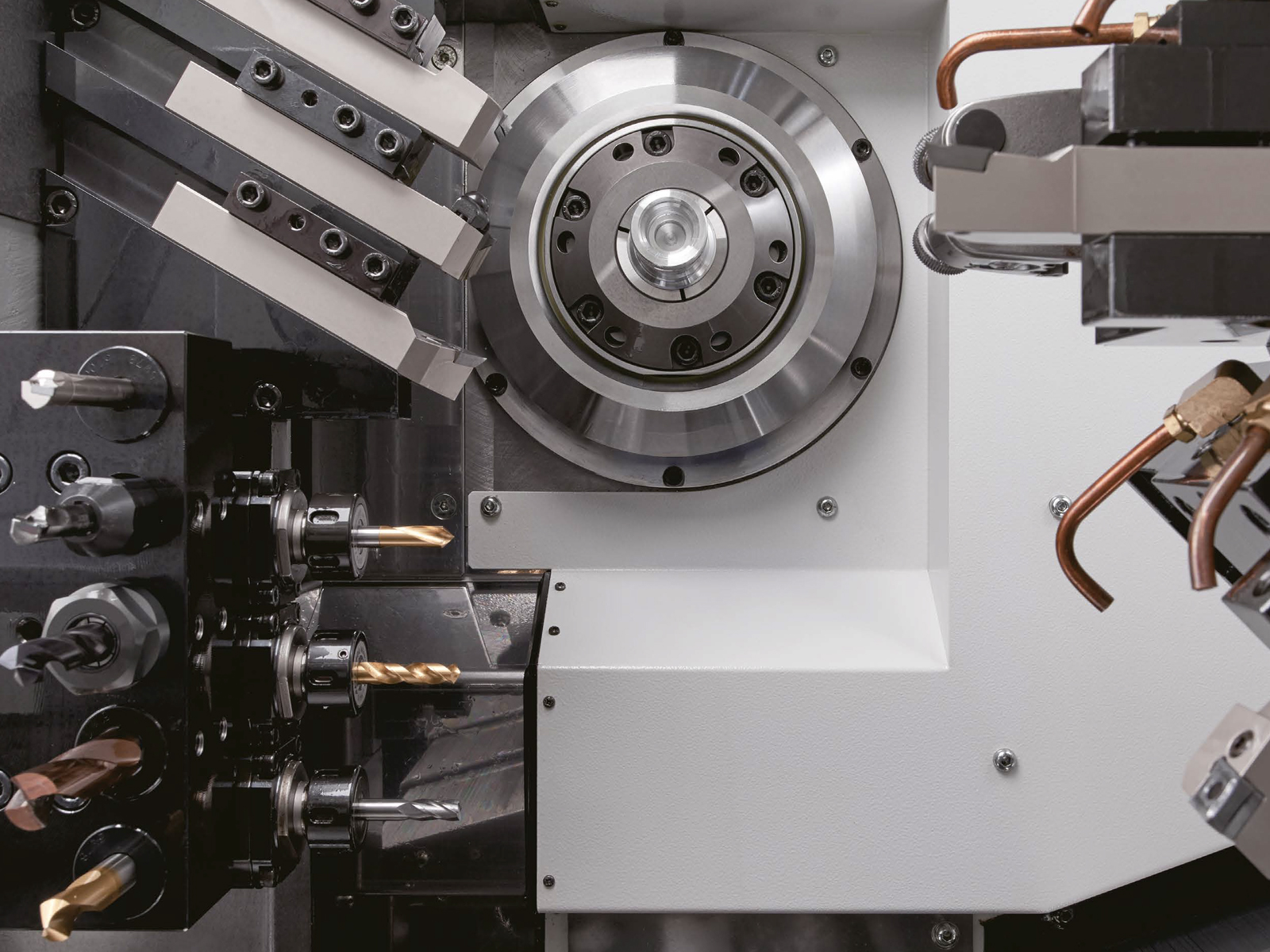

A 4-position tool holder for back machining allows up to 45 tools to be mounted. This expands the machine’s flexibility for complex components and quick changeovers.
The BNA-42GTY CNC Fixed Head delivers precision, speed, and reliability in a compact footprint.
| Items | BNA-42GTY | |
|---|---|---|
| Maximum Machining Diameter of Bar Work | SP1 | ø42mm |
| SP2 | ø34mm | |
| Maximum Machining Length | 100mm | |
| Spindle motor(15min./Cont.) | SP1 | 11/7.5kW |
| SP2 | 5.5/3.7kW | |
| Spindle speed | SP1 | 6,000min-1 |
| SP2 | 5,000min-1 | |
| Type of Turret | 8St.Turret(half-indexing mechanism) | |
| Shank Height of Square Turning Tool | □20mm | |
| Diameter of Drill Shank | ø25mm | |
| Rapid feed rate | Z1 axis | 30m/min |
| X1 axis | 24m/min | |
| Y1 axis | 30m/min | |
| Z2 axis | 20m/min | |
| X2 axis | 20m/min | |
| Y2 axis | 12m/min | |
| Z3 axis | 20m/min | |
| X3 axis | 12m/min | |
| Maximum Number of Revolving Tools | 8 | |
| Machine Height | 1,680mm | |
| Floor Space | 2,350×1,475mm | |
| Machine Weight | 3,750kg |
